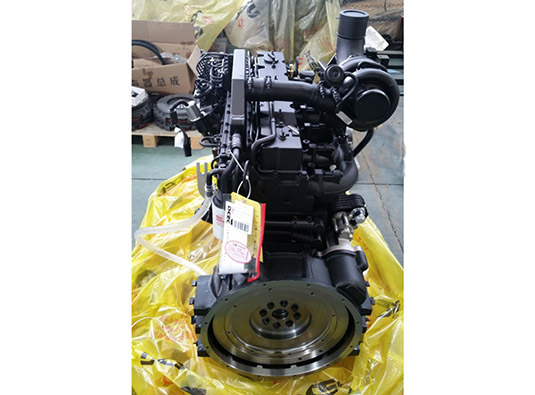

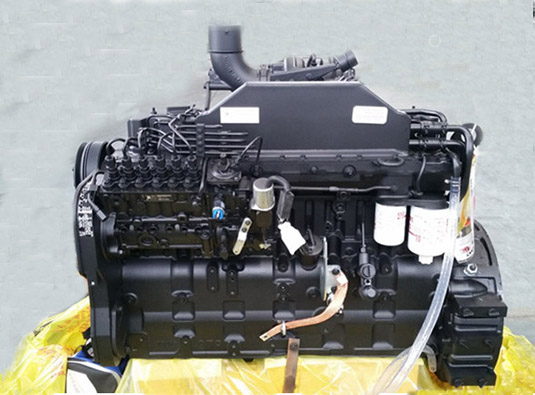

Cummins 6CT series engine for industry

Brand: Cummins
Cooling way: Water cooled
Cylinder No.: 6 cylinder
Displacement: 8.3L
Usage: Industry

Get Price Contact Download

share to :

Product Description Technical Data Related Products

Product Description:

The Cummins 6CT series diesel engine has the highest thermal efficiency (engine efficiency) of any practical internal or external combustion engine due to its very high expansion ratio and inherent lean burn which enables heat dissipation by the excess air. A small efficiency loss is also avoided compared to two-stroke non-direct-injection gasoline engines since unburned fuel is not present at valve overlap and therefore no fuel goes directly from the intake/injection to the exhaust. Low-speed diesel engines (as used in ships and other applications where overall engine weight is relatively unimportant) can have a thermal efficiency that exceeds 50%.

Technical Data:

	Engine Model	Rated power/speed	Peak torque/speed	Aspiration	Emission Standard
C (6Cyls/8.3L)	6CTA8.3-C145	108kW/1900rpm	672N.m/1300rpm	Turbocharged & intercooled	TierⅠ
	6CTA8.3-C195	145kW/1900rpm	820N.m/1500rpm	Turbocharged & intercooled	TierⅠ
	6CTA8.3-C205	151kW/1850rpm	900N.m/1400rpm	Turbocharged & intercooled	TierⅠ
	6CTA8.3-C212	158kW/2200rpm	908N.m/1500rpm	Turbocharged & intercooled	TierⅠ
	6CTA8.3-C215（highland)	160kW/2200rpm	908N.m/1500rpm	Turbocharged & intercooled	TierⅠ
	6CTA8.3-C215	160kW/2200rpm	908N.m/1500rpm	Turbocharged & intercooled	TierⅠ
	6CTA8.3-C230	170kW/1850rpm	1000N.m/1400rpm	Turbocharged & intercooled	TierⅠ
	6CTA8.3-C230	172kW/2200rpm	1000N.m/1500rpm	Turbocharged & intercooled	TierⅠ
	6CTA8.3-C240	179kW/2200rpm	1028N.m/1500rpm	Turbocharged & intercooled	TierⅠ
	6CTA8.3-C260	194kW/2200rpm	1135N.m/1500rpm	Turbocharged & intercooled	TierⅠ
	6CTAA8.3-C195	146kW/1950rpm	960N.m/1300rpm	Turbocharged & intercooled	Tier Ⅱ
	6CTAA8.3-C215	160kW/2200rpm	980N.m/1500rpm	Turbocharged & intercooled	Tier Ⅱ
	6CTAA8.3-C220	164kW/1950rpm	1100N.m/1300rpm	Turbocharged & intercooled	Tier Ⅱ
	6CTAA8.3-C240	179kW/2200rpm	1040N.m/1400rpm	Turbocharged & intercooled	Tier Ⅱ
	6CTAA8.3-C260	194kW/2200rpm	1100N.m/1400rpm	Turbocharged & intercooled	Tier Ⅱ
